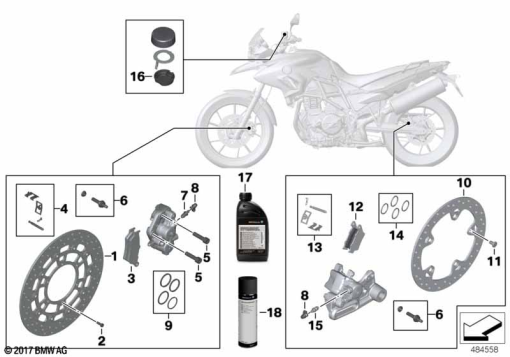

Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 7 713 131 | BRAKE ROTOR, FRONT - D=300/5,00 | - | |
| 2 | 34 11 7 709 137 | FILLISTER HEAD SCREW - M6X18-8.8-MK | - | |
| 3 | 34 11 7 705 216 | SET: SET OF BRAKE PADS FRONT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 3 | - | ||
| 4 | 34 11 7 651 954 | SET: SET OF MOUNTING PARTS, LEFT | - | |
34 11 7 721 854 | SET: SET OF MOUNTING PARTS, RIGHTAlternative for position 4 | - | ||
| 5 | 07 12 9 903 976 | TORX SCREW - M10X40-Z1-10.9 | - | |
| 6 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - | |
| 7 | 34 21 2 330 310 | VENT SCREW - M10 | - | |
| 8 | 34 21 1 236 794 | DUST CAP | - | |
| 9 | 34 11 7 651 956 | SET: OF SEALS FOR BRAKE PISTON - D=30MM/32MM | - | |
| 10 | 34 21 7 664 102 | BRAKE DISK | - | |
| - | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| 11 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| 12 | 34 21 7 107 625 | BRAKE PADS KIT, REAR | - | |
34 21 7 722 884 | SET: BRAKE PADS KIT, REAR (to 01/18)Alternative for position 12 | - | ||
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 12 | - | ||
34 21 7 107 625 | SET: BRAKE PADS KIT, REARAlternative for position 12 | - | ||
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 12 | - | ||
| 13 | 34 21 8 529 919 | SET: SET OF MOUNTING PARTS, BRAKE PADS | - | |
| 14 | 34 21 7 651 957 | SET: SET OF BRAKE CALIPER PISTON SEALS | - | |
| 15 | 34 21 2 335 975 | VENT SCREW | - | |
| 16 | 32 72 7 673 999 | RUBBER BOOT | - | |
| 17 | 83 13 2 405 975 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 01/18) | - | |
83135A824F2 | BRAKE FLUID DOT4, LOW-VISCOSITY EU - 250MLAlternative for position 17 | - | ||
83 13 2 445 461 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 01/18)Alternative for position 17 | - | ||
83105A87362 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1LAlternative for position 17 | - | ||
83135A824F1 | BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60LAlternative for position 17 | - | ||
| 18 | 83 19 2 445 462 | BRAKE CLEANER 2.0 - 500ML (to 01/18) | - | |
83195A23100 | BRAKE CLEANER, ACETONE-FREE - 500MLAlternative for position 18 | - |
