Parts List (11)

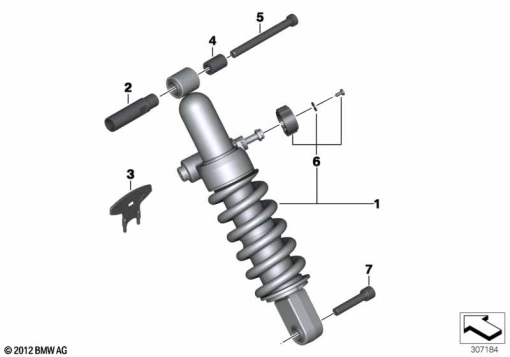

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 54 8 522 114 | SPRING STRUT, ESA, REAR | - | |
33 54 8 528 649 | SPRING STRUT, REAR - LSHAlternative for position 1 | - | ||
33 54 8 557 852 | SPRING STRUT REAR RED - LSHAlternative for position 1 | - | ||
33 54 8 528 648 | SPRING STRUT, REARAlternative for position 1 | - | ||
33 54 8 557 851 | SPRING STRUT REAR REDAlternative for position 1 | - | ||
| 2 | 33 53 7 713 130 | SLEEVE | - | |
| 3 | 33 53 8 546 009 | HAND LEVER | - | |
| 4 | 33 53 7 709 923 | BUSH | - | |
| 5 | 07 12 9 906 442 | ISA SCREW - M12X120-10.9 | - | |
| 6 | 33 54 8 532 171 | ADJUSTMENT WHEEL SPRING STRUT ADJUSTMENT | - | |
| 7 | 46 51 7 688 995 | ISA SCREW - M12X1,5-60-MK | - |
