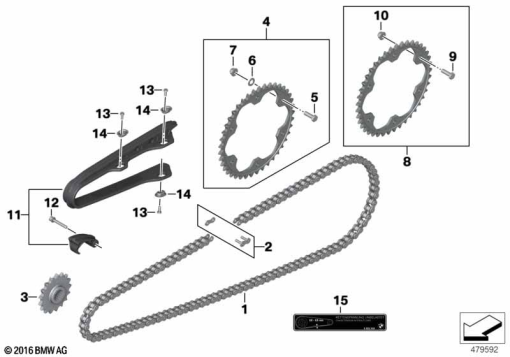

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 83 7 729 213 | CHAIN - 115 | - | |
33 83 7 729 302 | CHAIN LOCKAlternative for position 1 | - | ||
| 2 | 33 83 7 729 302 | CHAIN LOCK | - | |
| 3 | 27 71 7 708 480 | CHAIN PINION - Z=17 | - | |
| 4 | 33 81 8 533 977 | SET: SPROCKET WHEEL SET - Z=42; M10 | - | |
| - | 27 71 7 717 630 | SPROCKET HUB - M10 | - | |
| - | 27 71 7 721 920 | SPROCKET HUB - M10 | - | |
| 5 | 07 11 9 902 912 | HEX BOLT - M10X30-10.9ZNS3 | - | |
| 6 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | - | |
| 7 | 22 11 6 779 973 | FLANGE NUT - M10 | - | |
| 11 | 27 72 7 712 277 | SET: SET OF CHAIN GUIDE RAILS | - | |
| 12 | 07 12 9 903 809 | ISA SCREW - M6X40 | - | |
| 13 | 07 12 9 904 849 | ISA SCREW - M5X12-8.8-ZNNIV | - | |
| 14 | 27 72 2 345 835 | FIXING PIECE, CHAIN GUIDE | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
