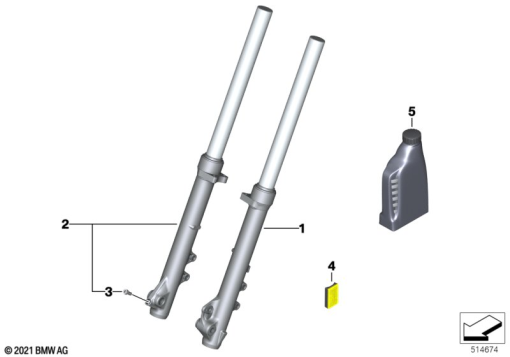

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 534 999 | FORK LEG LEFT | - | |
63 14 8 529 376 | REAR REFLECTOR YELLOWAlternative for position 1 | - | ||
31 42 8 566 585 | FORK LEG LEFTAlternative for position 1 | - | ||
63 14 8 529 376 | REAR REFLECTOR YELLOWAlternative for position 1 | - | ||
| 2 | 31 42 8 534 998 | FORK LEG RIGHT | - | |
| - | 63 14 8 529 376 | REAR REFLECTOR YELLOW | - | |
| 2 | 31 42 8 566 586 | FORK LEG RIGHT | - | |
| - | 63 14 8 529 376 | REAR REFLECTOR YELLOW | - | |
| 3 | 07 12 9 904 065 | ISA SCREW - M8X20-8.8-ZNS3 | - | |
| 4 | 63 14 8 529 376 | REAR REFLECTOR YELLOW | - | |
| 5 | 83 19 2 408 581 | TELESCOPIC FORKS OIL TYPE 2 - 1000ML (to 03/18) | - | |
83 19 2 460 735 | TELESCOPIC FORKS OIL TYPE 2 - 1000MLAlternative for position 5 | - |
