F700GS (K70) | Front Suspension

FORK TUBE / SHOCK / SPRING

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

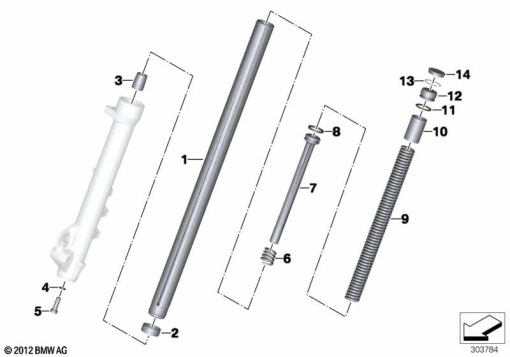

Diagram #31_1010 | 15 parts

100%

Parts List (15)

#	Part Number	Description	Qty
1	31 42 8 521 282	STANCHION	-
2	31 42 2 310 346	BUSH	-
3	31 42 7 666 238	STOPPER	-
4	31 42 7 666 239	GASKET RING	-
5	31 42 7 666 240	FILLISTER-HEAD SCREW - M10X30-8.8-ZNS3	-
6	31 42 7 666 229	COMPRESSION SPRING	-
7	31 42 8 521 285	DAMPER PIPE	-
	31 42 8 521 284	DAMPER PIPEAlternative for position 7	-
8	31 42 7 666 228	PISTON RING	-
9	31 42 8 520 419	COMPRESSION SPRING	-
10	31 42 8 520 420	SPACER TUBE	-
11	31 42 7 666 219	O-RING	-
12	31 42 7 666 218	PLUG	-
13	31 42 7 666 217	SNAP RING	-
14	31 42 7 666 216	COVERING CAP	-
