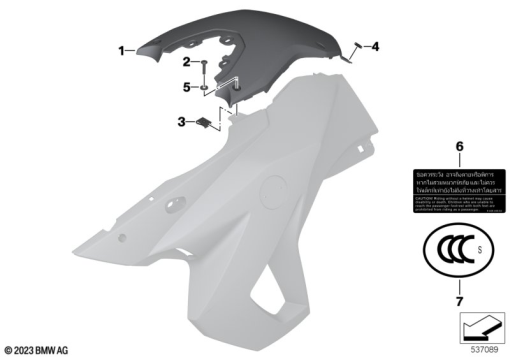

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 723 892 | COVER CENTER PRIMED (to 10/15) | - | |
46 63 7 705 007 | COVERING CENTER - ROHTEIL / BLANK (to 10/15)Alternative for position 1 | - | ||
46 63 8 555 626 | COVERING CENTER - ROHTEIL / BLANK (from 10/15)Alternative for position 1 | - | ||
| 2 | 63 13 7 655 661 | OVAL HEAD SCREW - M5X25 | - | |
| 3 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 4 | 61 35 7 693 145 | GROMMET - 8X16X8MM | - | |
| 5 | 46 63 7 714 241 | PLASTIC WASHER - M5 | - |
