F700GS (K70) | Frame, Fairing, Cases

CENTER STAND ATTACHMENT

Diagram #46_1893 | 3 parts

100%

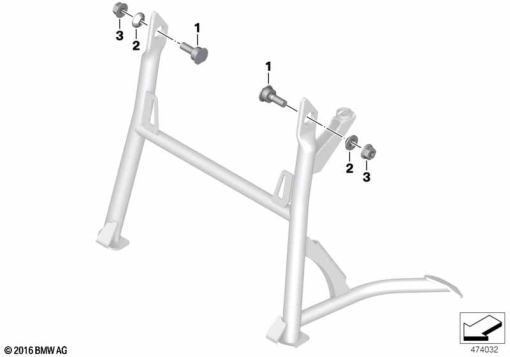

F700GS (K70) CENTER STAND ATTACHMENT exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 52 8 522 504
BOLT - M10-10.9 MK1
2
46 52 8 522 507
CONICAL SUPPORTING PLATE1
3
77 14 9 908 443
HEX NUT - M10-10-ZNNIV SI1
