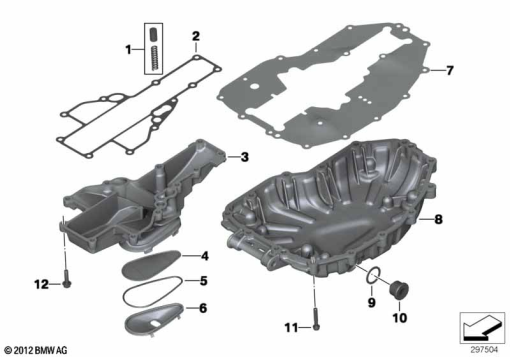

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 8 524 135 | CONSTANT PRESSURE VALVE | - | |
| 2 | 11 11 7 686 581 | GASKET | - | |
| 3 | 11 14 8 533 587 | COVER | - | |
| - | 11 11 7 686 581 | GASKET | - | |
| 11 | 11 14 7 700 067 | Hexagon screw with flange | - | |
11 14 7 724 071 | HEXAGON SCREW WITH FLANGE - M6X25-8.8 MKAlternative for position 11 | - | ||
| - | 11 41 7 690 445 | OIL STRAINER | - | |
| - | 11 41 7 690 447 | O-RING - 75X2,5 | - | |
| - | 11 41 7 708 132 | COVER | - | |
| - | 11 41 7 690 447 | O-RING - 75X2,5 | - | |
| - | 11 11 7 707 905 | GASKET, OIL PAN | - | |
| - | 11 13 7 708 307 | OIL PAN | - | |
| - | 11 11 7 707 905 | GASKET, OIL PAN | - | |
| - | 11 41 7 652 949 | GASKET RING - 24X30X1,5 | - | |
| - | 11 13 7 708 604 | SCREW PLUG, MAGNETIC - M24X2 | - | |
| 11 | 12 31 7 723 973 | HEXAGON COLLAR SCREW - M6X35-10.9 ZNS3 | - | |
| 12 | 11 14 7 700 067 | Hexagon screw with flange | - | |
11 14 7 724 071 | HEXAGON SCREW WITH FLANGE - M6X25-8.8 MKAlternative for position 12 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
