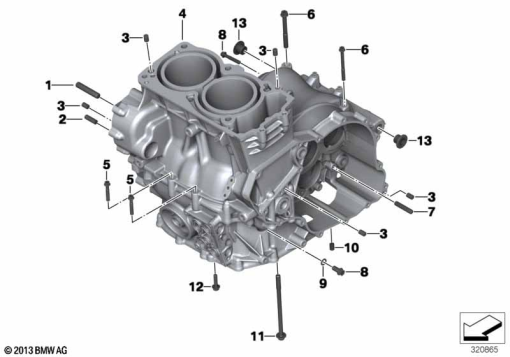

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 2 343 234 | DOWEL PIN - 10X50 | - | |
| 2 | 12 41 7 690 433 | DOWEL PIN - 6X40 | - | |
| 3 | 11 11 2 343 233 | ROLL PIN - M8X12 | - | |
| 4 | 11 11 8 540 741 | ENGINE HOUSING, BLACK | - | |
11 25 7 690 413 | LOCK RINGAlternative for position 4 | - | ||
| - | 11 25 8 535 195 | PISTON - 81,97 | - | |
| 5 | 12 31 7 707 433 | HEXAGON BOLT WITH INSIDE TORX - M6X35-8.8 | - | |
| 6 | 11 11 7 690 495 | HEXAGON BOLT WITH INSIDE TORX - M6X65-8.8 | - | |
11 11 7 690 508 | HEXAGON BOLT WITH INSIDE TORX - M8X70-8.8Alternative for position 6 | - | ||
| 7 | 11 11 7 690 503 | DOWEL PIN - M6X40 | - | |
| 8 | 11 11 7 699 121 | TORX SCREW WITH COLLAR - M8X16 | - | |
| 9 | 11 11 2 343 010 | GASKET RING - A8X13 | - | |
| 10 | 11 14 7 699 125 | ROLL PIN - 12X12 | - | |
| 11 | 11 11 7 690 507 | HEX SCREW WITH COLLAR - M8X130-10.9 | - | |
11 11 7 690 506 | HEX SCREW WITH COLLAR - M8X77-10.9Alternative for position 11 | - | ||
| 12 | 23 00 7 690 404 | HEXAGON BOLT WITH INSIDE TORX - M6X16-8.8 | - | |
| 13 | 11 11 2 343 013 | BUSH | - |
