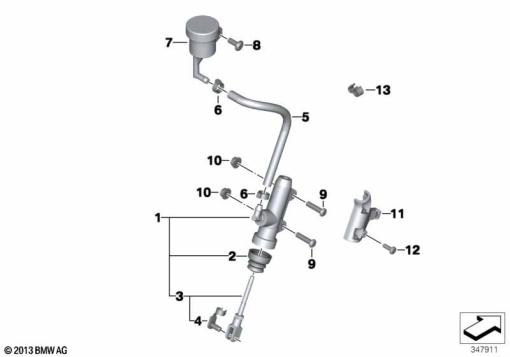

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 7 692 190 | REAR BRAKE MASTER CYLINDER - D=13MM | - | |
| 2 | 34 31 2 314 289 | RUBBER BOOT | - | |
| 3 | 34 31 7 706 459 | 0.09 | - | |
| 4 | 07 12 9 934 961 | PIN - 6X12 | - | |
| 5 | 34 32 2 314 742 | HOSE, BULK - 6X10 (meter) | - | |
| 6 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | - | |
| 7 | 34 21 7 706 055 | EXPANSION TANK | - | |
| 8 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 9 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - | |
| 10 | 07 11 9 905 949 | HEX NUT WITH PLATE - M6-8-ZNNIV SI | - | |
| 13 | 22 11 6 758 925 | CABLE CLAMP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
