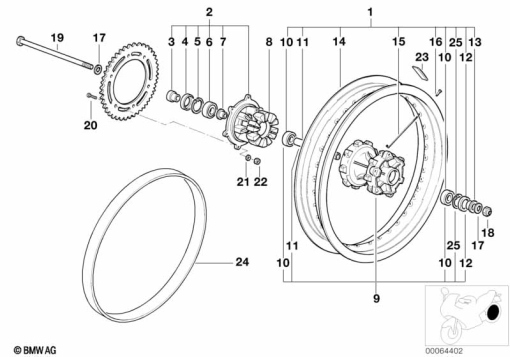

Parts List (32)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 2 345 471 | REAR WHEEL - 3,00X17 | - | |
| 2 | 27 71 2 345 331 | CARRIER | - | |
| 3 | 27 71 2 345 339 | SPACER SLEEVE | - | |
| 4 | 36 31 2 335 070 | SHAFT SEAL - 30X47X7 | - | |
| 5 | 07 11 9 906 808 | LOCK RING - 47X1,75 | - | |
| 6 | 36 31 8 534 835 | GROOVED BALL BEARING - 20X47X14 | - | |
| - | Ball bearing 6204 - 2RS1. | Ball bearing 6204 - 2RS1. | - | |
| 7 | 27 71 2 345 332 | SPACER SLEEVE | - | |
| 8 | 27 71 2 345 333 | ABSORBER | - | |
| 9 | 36 31 2 345 328 | WHEEL HUB | - | |
| 10 | 31 42 2 314 724 | GROOVED BALL BEARING - 17X40X12 | - | |
| 11 | 36 31 2 345 336 | SPACER SLEEVE | - | |
| 12 | 07 11 9 965 056 | SHAFT SEAL - AS30X40X7 (to 01/00) | - | |
36 31 8 561 714 | SHAFT SEAL - AS30X40X7Alternative for position 12 | - | ||
| 13 | 36 31 2 345 344 | SPACER SLEEVE | - | |
| 14 | 36 31 2 345 327 | RIM - 3,00X17 | - | |
| 15 | 36 31 2 345 329 | SPOKE - D=3,5 | - | |
| 16 | 36 31 2 345 623 | NIPPLE - D=3,5MM | - | |
| 17 | 36 31 2 345 343 | WASHER | - | |
| 18 | 36 31 2 345 473 | HEX NUT - M16X1,5 | - | |
| 19 | 36 31 2 345 342 | QUICK-RELEASE AXLE - D=17 | - | |
| 20 | 36 31 2 345 496 | HEX BOLT - M8X30 | - | |
| 21 | 36 31 2 345 497 | WASHER - 8,4 | - | |
| 22 | 36 31 2 345 495 | HEX NUT - M8 | - | |
| 23 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 23 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 23 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 23 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 23 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 23 | - | ||
| 24 | 61 13 8 351 989 | FABRIC-TAPE - L=50M, B=30MM (meter) | - | |
| 25 | 07 11 9 906 782 | LOCK RING - 40X1,75-ZNS3 | - |
