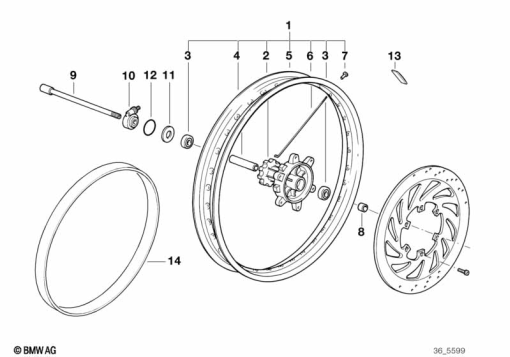

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 2 345 469 | FRONT WHEEL - 2,15X19 | - | |
| 2 | 36 31 2 345 348 | WHEEL HUB | - | |
| 3 | 31 42 2 314 724 | GROOVED BALL BEARING - 17X40X12 | - | |
| 4 | 36 31 2 345 468 | SPACER SLEEVE | - | |
| 5 | 36 31 2 345 352 | RIM - 2,15X19 | - | |
| 6 | 36 31 2 345 353 | SPOKE FRONT LEFT - L=224/D=3,5 | - | |
36 31 2 345 354 | SPOKE FRONT RIGHT - L=223/D=3,5Alternative for position 6 | - | ||
| 7 | 36 31 2 345 623 | NIPPLE - D=3,5MM | - | |
| 8 | 36 31 2 345 350 | SPACER SLEEVE | - | |
| 9 | 36 31 2 345 351 | QUICK-RELEASE AXLE - D=17 | - | |
| 10 | 62 11 2 346 414 | SPEEDOMETER DRIVE | - | |
| 11 | 62 12 2 345 467 | STOP DISK | - | |
| 12 | 62 11 2 346 459 | GASKET RING | - | |
| 13 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 13 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 13 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 13 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 13 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 13 | - | ||
| 14 | 61 13 8 351 989 | FABRIC-TAPE - L=50M, B=30MM (meter) | - |
