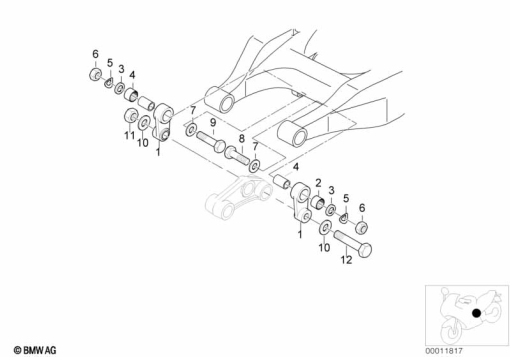

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 345 297 | TENSION STRUT | - | |
| 2 | 33 53 2 345 444 | NEEDLE BEARING - 18X24X12 | - | |
| 3 | 33 53 2 345 441 | GASKET RING - 18X24X3 | - | |
| 4 | 33 53 2 345 443 | BUSH | - | |
| 5 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | - | |
| 6 | 33 53 2 345 532 | SELF-LOCKING HEX NUT - M10 | - | |
| 7 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 8 | 33 17 2 345 390 | HEX BOLT - M10X47 | - | |
| 9 | 33 17 2 345 391 | HEX BOLT - M10X38 | - | |
| 10 | 07 11 9 901 766 | WASHER - A13/HV-ZNS (to 09/00) | - | |
07 11 9 904 119 | WASHER - 12-300 HV-ZNS3Alternative for position 10 | - | ||
| 11 | 33 53 2 345 533 | SELF-LOCKING HEX NUT - M12 | - | |
| 12 | 33 17 2 345 393 | HEX BOLT - M12X108 | - |
