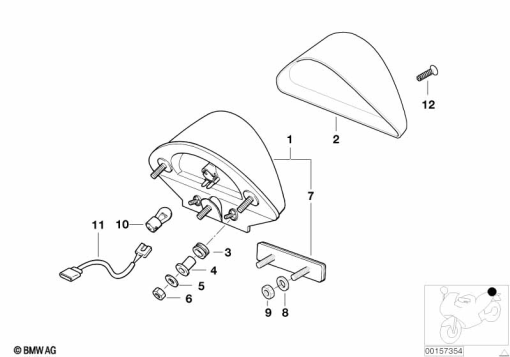

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 21 2 346 531 | REAR LIGHT | - | |
| 2 | 63 21 2 346 531 | REAR LIGHT | - | |
| 3 | 62 21 2 346 443 | RUBBER MOUNTING | - | |
| 4 | 63 21 2 346 564 | BUSH | - | |
| 5 | 63 14 2 346 468 | WASHER - 6,6X18X1,6 | - | |
| 6 | 63 14 2 346 469 | HEX NUT - M6 | - | |
| 7 | 63 21 2 346 438 | REAR REFLECTOR RED | - | |
| 8 | 07 11 9 904 205 | WASHER - 9X4,3X0,8-200HV | - | |
07 11 9 931 637 | FLAT WASHERAlternative for position 8 | - | ||
| 9 | 07 12 9 964 678 | HEX NUT | - | |
| 10 | 07 11 9 905 511 | LONGLIFE BULB - 12V 21/5W | - | |
| 11 | 61 11 2 346 408 | REAR LIGHT WIRING SET | - | |
| 12 | 63 21 7 654 407 | COUNTERSUNK HEAD SCREW - 3,9X25 | - |
