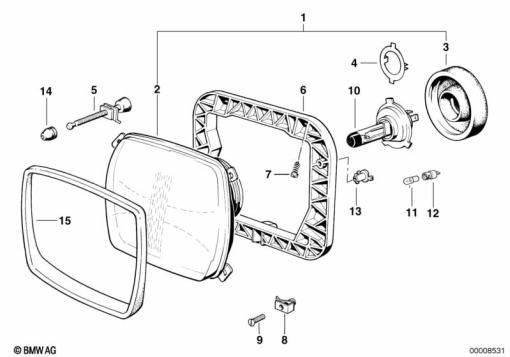

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 1 459 600 | HEADLIGHT | - | |
63 12 1 459 613 | HEADLIGHTAlternative for position 1 | - | ||
| 2 | 63 12 1 459 602 | LENS WITH REFLECTOR | - | |
63 12 1 459 603 | LENS WITH REFLECTORAlternative for position 2 | - | ||
| 3 | 63 12 1 459 377 | 0.05 | - | |
| 4 | 63 12 1 459 470 | CLIP | - | |
| 5 | 63 12 1 459 605 | SET: ADJUSTING SCREW | - | |
| 6 | 63 12 1 459 604 | FRAME | - | |
| 7 | 07 11 9 907 595 | FILLISTER HEAD SCREW - M5X12-Z3-1 | - | |
| 8 | 61 13 1 372 033 | BODY NUT - M5 | - | |
| 9 | 07 11 9 906 416 | FILLISTER HEAD SCREW - M5X25 | - | |
| 10 | 63 12 1 354 619 | BULB - H4 | - | |
| 11 | 07 11 9 978 256 | BULB | - | |
07 11 9 978 2561 | PARKING BULBAlternative for position 11 | - | ||
07 50 9 063 576 | BULB - 12V 4WAlternative for position 11 | - | ||
| 12 | 63 12 1 459 758 | BULB SOCKET | - | |
| 13 | 63 12 1 459 997 | CLAMPING | - | |
| 14 | 63 12 1 369 833 | JOINT SLEEVE | - | |
| 15 | 63 12 2 346 364 | COVER | - |
