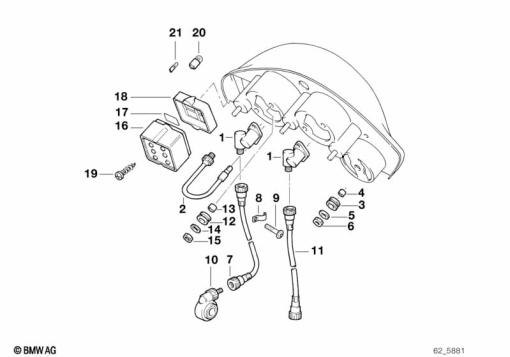

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 2 346 455 | TRANSMISSION | - | |
| 2 | 62 11 2 346 454 | RETAINER SHAFT - TACHO | - | |
| 3 | 62 11 2 346 125 | RUBBER GROMMET | - | |
| 4 | 62 11 2 346 126 | BUSH | - | |
| 5 | 62 11 2 346 127 | WASHER | - | |
| 6 | 62 11 2 346 128 | HEX NUT - M5 | - | |
| 7 | 62 11 2 346 413 | SPEEDO CABLE | - | |
| 8 | 46 61 2 346 068 | 0.01 | - | |
| 9 | 18 11 2 345 087 | FLANGE SCREW - M6X16 | - | |
| 10 | 62 11 2 346 414 | SPEEDOMETER DRIVE | - | |
| 11 | 62 11 2 346 487 | REVOLUTION COUNTER CABLE | - | |
| 12 | 62 11 2 346 121 | RUBBER WASHER | - | |
| 13 | 62 11 2 346 122 | BUSH | - | |
| 14 | 62 11 2 346 127 | WASHER | - | |
| 15 | 52 53 7 655 579 | SELF-LOCKING HEX NUT - M5-A2 | - | |
| 16 | 62 11 2 346 449 | HOUSING | - | |
| 17 | 62 11 2 346 129 | CONTROL SYMBOL - GREEN | - | |
62 11 2 346 130 | CONTROL SYMBOL - REDAlternative for position 17 | - | ||
62 11 2 346 131 | CONTROL SYMBOL - BLUEAlternative for position 17 | - | ||
| 18 | 62 11 2 346 132 | PLATE | - | |
| 19 | 62 11 2 346 133 | SCREW - 2,9X12,7 | - | |
| 20 | 62 14 2 346 477 | BULB - 12V/3W | - | |
| 21 | 62 14 2 346 478 | BULB - 12V/2W | - |
