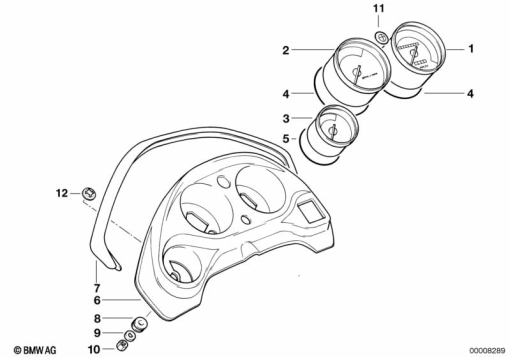

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 2 346 135 | SPEEDOMETER - MPH | - | |
| 2 | 62 11 2 346 415 | REVOLUTION COUNTER | - | |
| 3 | 62 13 2 346 523 | CLOCK - MUE | - | |
| - | 62 13 2 346 497 | SWITCH - ZEITUHR | - | |
| 4 | 62 11 2 346 453 | O-RING - 75,9 | - | |
| 5 | 62 11 2 346 457 | O-RING - 50,9 | - | |
| 6 | 62 11 2 346 253 | HOUSING | - | |
| 7 | 62 11 2 346 254 | GASKET | - | |
| 8 | 62 21 2 346 443 | RUBBER MOUNTING | - | |
| 9 | 63 14 2 346 468 | WASHER - 6,6X18X1,6 | - | |
| 10 | 63 14 2 346 469 | HEX NUT - M6 | - | |
| 11 | 51 14 2 308 800 | BADGE - D=21MM | - | |
| 12 | 62 11 2 346 483 | SPRING NUT | - | |
| 13 | 46 71 2 346 495 | HOLDER | - |
