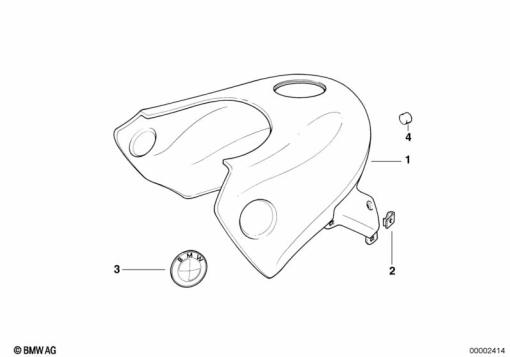

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 346 262 | TRIM PANEL | - | |
46 63 2 346 271 | TRIM PANELAlternative for position 1 | - | ||
46 63 2 346 272 | TRIM PANELAlternative for position 1 | - | ||
46 63 2 346 273 | TRIM PANELAlternative for position 1 | - | ||
| 2 | 16 11 2 345 079 | BODY NUT - M5 | - | |
| 3 | 46 63 7 686 746 | BADGE - D=70MM | - | |
| 4 | 16 11 2 346 150 | PUSHROD SEAL | - |
