Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 16 11 2 346 013 | FRONT BLACK TRIM PANEL | - | |
| 4 | 16 11 2 345 082 | SCREW - M4X10 | - | |
| 7 | 16 11 2 345 083 | SCREW - M6X15-8.8 ZNS | - | |
| 8 | 16 11 2 345 127 | FUEL TAP | - | |
| 9 | 11 31 7 690 476 | O-RING - 23,4X3,53 | - | |
| 10 | 16 11 2 346 149 | NIPPLE | - | |
| 11 | 16 11 2 345 085 | WAVE WASHER - 6,4X11X0,5 | - | |
| 12 | 16 12 2 345 065 | HOSE - 7,5X13 (meter) | - | |
| 13 | 16 11 2 345 077 | CLAMP - 11,9 | - | |
| 14 | 13 71 2 345 164 | HOSE - 5,5X10X1500 | - | |
16 11 1 342 049 | HOSE RUNNING METER - Ø 8X4,5 (meter)Alternative for position 14 | - | ||
| 15 | 16 11 2 345 078 | CLAMP - 9,1 | - | |
| 17 | 16 11 2 345 108 | FUEL TAP GASKET SET | - |

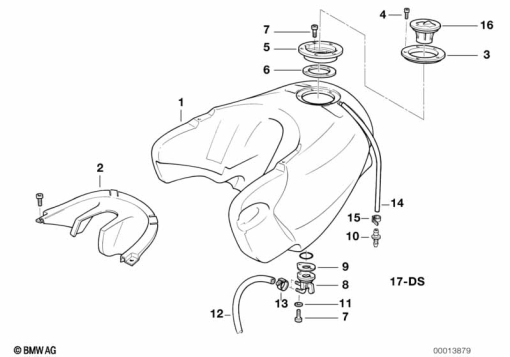

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
