F650 Funduro (E169) | Frame, Fairing, Cases

WINDSHIELD

Diagram #46_0355 | 5 parts

100%

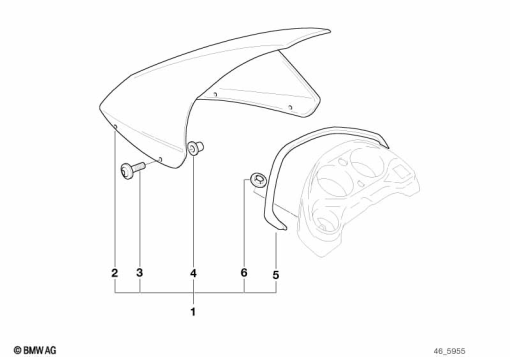

F650 Funduro (E169) WINDSHIELD exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
2
46 63 2 328 491
WINDSHIELD, CLEAR1
3
35 21 7 708 764
COUNTERSUNK SCREW - M5X201
4
46 63 2 345 091
RUBBER MOUNTING - M51
5
62 11 2 346 254
GASKET1
6
62 11 2 346 483
SPRING NUT1
