F650 Funduro (E169) | Frame, Fairing, Cases

TRIM PANEL UPPER PART

Diagram #46_0354 | 16 parts

100%

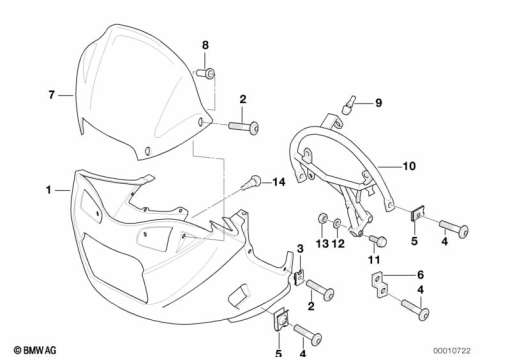

F650 Funduro (E169) TRIM PANEL UPPER PART exploded view parts diagram

Parts List (16)

#Part NumberDescriptionQty
1
46 63 2 346 283
TRIM PANEL UPPER PART - FLAMMROT-
46 63 2 346 284
TRIM PANEL UPPER PART - TIEFBLACKAlternative for position 1-
46 63 2 346 285
TRIM PANEL UPPER PART - AURAWHITEAlternative for position 1-
46 63 2 346 286
TRIM PANEL UPPER PART - MAJALAYELLOWAlternative for position 1-
2
35 21 7 708 764
COUNTERSUNK SCREW - M5X20-
3
16 11 2 345 079
BODY NUT - M5-
4
18 11 2 345 087
FLANGE SCREW - M6X16-
5
17 11 2 345 061
BODY NUT - M6-
6
46 63 2 346 267
HEADLIGHT BRACKET-
7
46 63 2 328 495
COCKPIT TRIM PANEL - BLACK-
8
46 63 2 345 091
RUBBER MOUNTING - M5-
10
46 63 2 346 327
FAIRING BRACKET - BLACK-
11
13 71 2 345 540
HEX BOLT - M6X30-
12
07 11 9 904 202
WASHER - A6,4-ZNNIV SI-
13
63 14 2 346 469
HEX NUT - M6-
14
16 11 2 346 150
PUSHROD SEAL-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
