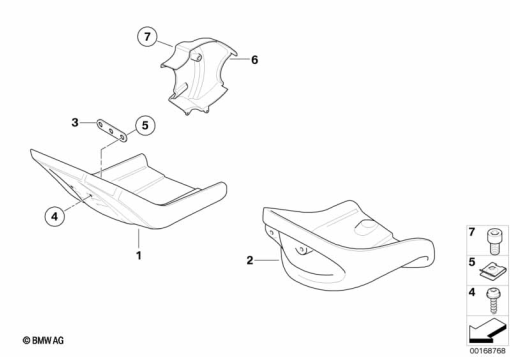

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 346 275 | UNDERRIDE PROTECTION - BLACK | - | |
| 3 | 46 51 2 345 260 | HOLDER | - | |
| 4 | 11 11 2 345 125 | COLLAR SCREW - M5X16 | - | |
| 5 | 16 11 2 345 079 | BODY NUT - M5 | - | |
| 6 | 11 11 2 345 025 | COVER FOR PINION | - | |
| 7 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
