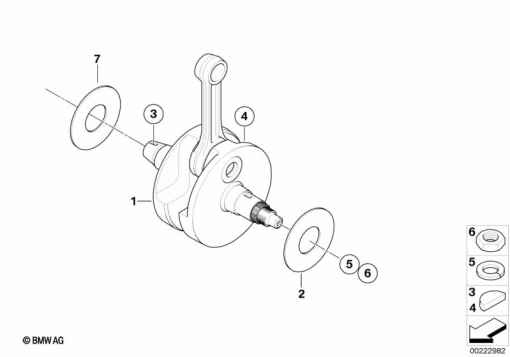

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 2 343 045 | CRANKSHAFT | 1 | |
| 2 | 11 21 2 343 055 | SHIM - 48X67X1 | 1 | |
| 2 | 11 21 2 343 056 | SHIM - 48X67X1,25 | 1 | |
| 2 | 11 21 2 343 057 | SHIM - 48X67X1,5 | 1 | |
| 2 | 11 21 2 343 058 | SHIM - 48X67X1,75 | 1 | |
| 3 | 11 27 2 343 243 | WOODRUFF KEY - 4X5 | 1 | |
| 4 | 21 21 2 343 255 | WOODRUFF KEY - 6X9 | 1 | |
| 5 | 12 11 2 343 250 | LOCK RING - 22 | 1 | |
| 6 | 12 31 7 700 301 | HEX NUT - M22X1,5 | 1 | |
| 7 | 11 21 2 343 055 | SHIM - 48X67X1 | 1 |
