F650 Funduro (E169) | Engine

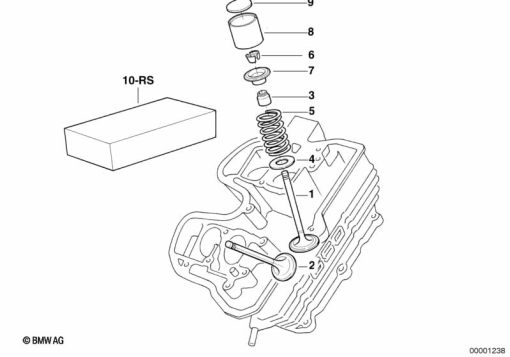

TIMING GEAR - INTAKE VALVE/EXHAUST VALVE
Diagram #11_1860 | 29 parts | 1 available in shop
100%
Parts List (29)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 34 2 343 225 | INTAKE VALVE - 36 | 1 | |
| 2 | 11 34 2 343 226 | EXHAUST VALVE - 31 | 1 | |
| 3 | 11 34 2 343 228 | VALVE SEAL RING | 1 | |
| 4 | 11 34 2 343 227 | STOP DISK - 11,2X28X1 | 1 | |
| 5 | 11 34 1 460 656 | VALVE SPRING | 1 | |
| 6 | 11 34 2 343 230 | VALVE COLLET | 1 | |
| 7 | 11 34 2 343 229 | SPRING POCKET | 1 | |
| 8 | 11 32 1 460 144 | CAM FOLLOWER | 1 | |
| 9 | 11 32 1 460 147 | ADJUSTMENT PLATE - 2.00 | 1 | |
| 9 | 11 32 1 460 148 | ADJUSTMENT PLATE - 2.05 | 1 | |
| 9 | 11 32 1 460 149 | ADJUSTING PLATE - 2.10 | 1 | |
| 9 | 11 32 1 460 150 | ADJUSTING PLATE - 2.15 | 1 | |
| 9 | 11 32 1 460 151 | ADJUSTING PLATE - 2.20 | 1 | |
| 9 | 11 32 1 460 152 | ADJUSTING PLATE - 2.25 | 1 | |
| 9 | 11 32 1 460 153 | ADJUSTING PLATE - 2.30 | 1 | |
| 9 | 11 32 1 460 154 | ADJUSTING PLATE - 2.35 | 1 | |
| 9 | 11 32 1 460 155 | ADJUSTING PLATE - 2.40 | 1 | |
| 9 | 11 32 1 460 156 | ADJUSTING PLATE - 2.45 | 1 | |
| 9 | 11 32 1 460 157 | ADJUSTING PLATE - 2.50 | 1 | |
| 9 | 11 32 1 460 158 | ADJUSTING PLATE - 2.55 | 1 | |
| 9 | 11 32 1 460 159 | ADJUSTING PLATE - 2.60 | 1 | |
| 9 | 11 32 1 460 160 | ADJUSTING PLATE - 2.65 | 1 | |
| 9 | 11 32 1 460 161 | ADJUSTING PLATE - 2.70 | 1 | |
| 9 | 11 32 1 460 162 | ADJUSTING PLATE - 2.75 | 1 | |
| 9 | 11 32 1 460 163 | ADJUSTING PLATE - 2.80 | 1 | |
| 9 | 11 32 1 460 164 | ADJUSTING PLATE - 2.85 | 1 | |
| 9 | 11 32 1 460 165 | ADJUSTING PLATE - 2.90 | 1 | |
| 9 | 11 32 1 460 166 | ADJUSTING PLATE - 2.95 | 1 | |
| 9 | 11 32 1 460 167 | ADJUSTING PLATE - 3.00 | 1 |
