F650 Funduro (E169) | Engine

TIMING GEAR - CAM SHAFT/CHAIN DRIVE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

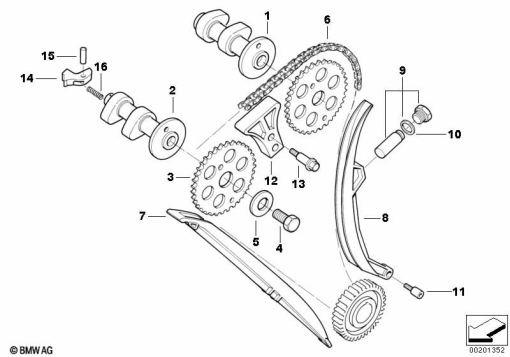

Diagram #11_1861 | 16 parts

100%

Parts List (16)

#	Part Number	Description	Qty
1	11 31 2 343 081	INLET CAMSHAFT	1
2	11 31 2 343 082	CAMSHAFT EXHAUST	1
3	11 31 2 343 083	SPROCKET - 34	1
4	11 31 2 343 285	HEX BOLT - M10X20	1
5	07 11 9 904 209	WASHER - 10-200 ZNS3	1
6	11 31 2 343 084	TIMING CHAIN	1
7	11 31 2 343 087	GUIDE RAIL	1
8	11 31 2 343 085	CHAIN TENSIONER	1
9	11 31 8 544 800	SET: SET OF CHAIN TENSIONERS	1
10	11 31 2 343 091	GASKET RING - 18,2X24X1	1
11	11 31 7 676 592	BEARING SCREW - M6X31-MK	1
12	11 31 2 343 088	0.03	1
13	11 31 2 343 089	SPACER BOLT - M6X16	1
14	11 31 2 343 095	DECOMPRESSION LEVER	1
15	11 31 2 343 096	ROLL PIN - 5X23,8	1
16	11 31 2 343 097	COMPRESSION SPRING	1
