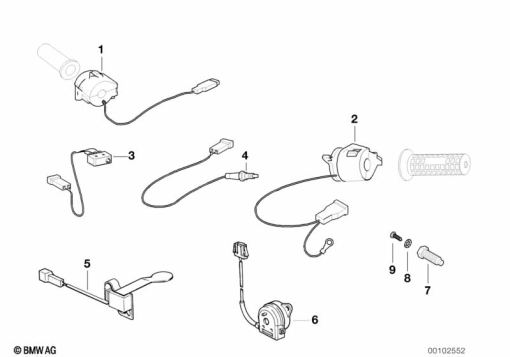

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 2 346 496 | COMBI SWITCH RIGHT, CONTINUOUS LIGHT | - | |
| 2 | 61 31 2 346 491 | COMBINATION SWITCH LEFT | - | |
| 3 | 61 31 2 346 504 | FRONT STOP LIGHT SWITCH | - | |
| - | 61 31 2 345 554 | FILLISTER-HEAD SCREW - M2X12 | - | |
| - | 61 31 2 345 555 | HEX NUT, FLAT - M2 | - | |
| 4 | 61 31 2 346 462 | CLUTCH SWITCH | - | |
| 5 | 61 31 1 459 588 | BRAKE LIGHT SWITCH FOOT BRAKE | - | |
| - | 63 14 2 346 469 | HEX NUT - M6 | - | |
| - | 12 13 2 345 541 | HEXAGON SCREW WITH FLANGE - M6X16 | - | |
| 6 | 61 31 2 346 313 | SWITCH, KICKSTAND | - | |
| 7 | 11 11 2 343 476 | IDLE SWITCH | - |
