F650 Funduro (E169) | Electrical System

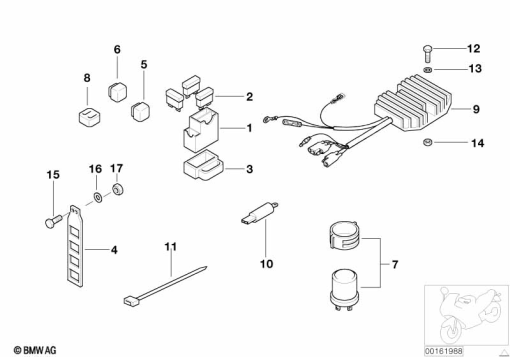

FUSE BOX / RELAY
Diagram #61_0275 | 19 parts | 1 available in shop
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 2 346 427 | FUSE BOX | 1 | |
| 2 | 61 13 2 346 424 | FUSE - 7,5 A | 1 | |
| 2 | 61 13 2 346 425 | FUSE - 15 A | 1 | |
| 2 | 61 13 2 346 426 | FUSE - 20 A | 1 | |
| 3 | 61 31 2 346 445 | HOLDER | 1 | |
| 4 | 61 13 2 346 433 | SUPPORTING RAIL | 1 | |
| 5 | 61 13 7 707 940 | RELAY | 1 | |
| 6 | 61 31 2 346 428 | HAZARD WARNING RELAY | 1 | |
| 7 | 61 31 2 346 444 | STARTER RELAY | 1 | |
| 8 | 61 31 2 346 464 | HOLDER | 1 | |
| 9 | 61 31 2 346 432 | VOLTAGE REGULATOR | 1 | |
| 10 | 61 31 2 346 465 | DIODE | 1 | |
| 11 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 12 | 12 13 2 345 541 | HEXAGON SCREW WITH FLANGE - M6X16 | 1 | |
| 13 | 63 14 2 346 468 | WASHER - 6,6X18X1,6 | 1 | |
| 14 | 63 14 2 346 469 | HEX NUT - M6 | 1 | |
| 15 | 07 11 9 905 215 | HEX BOLT - M5X16-U1-8.8 | 1 | |
| 16 | 62 11 2 346 127 | WASHER | 1 | |
| 17 | 52 53 7 655 579 | SELF-LOCKING HEX NUT - M5-A2 | 1 |
