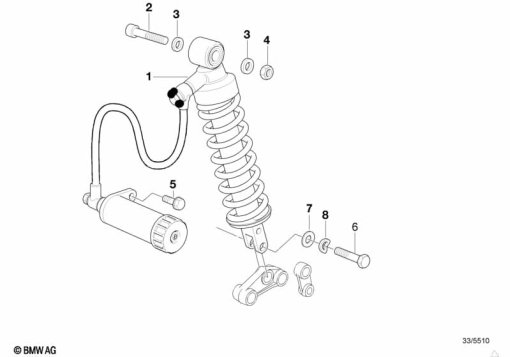

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 345 644 | SPRING STRUT, REAR | 1 | |
| 2 | 33 53 2 345 550 | FILLISTER-HEAD SCREW - M10X60 | 1 | |
| 3 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 4 | 33 53 2 345 532 | SELF-LOCKING HEX NUT - M10 | 1 | |
| 5 | 18 11 2 345 088 | HEX BOLT - M8X16 | 1 | |
| 6 | 33 53 2 345 547 | HEX BOLT - M10X1,25X45 | 1 | |
| 7 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 8 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | 1 |
