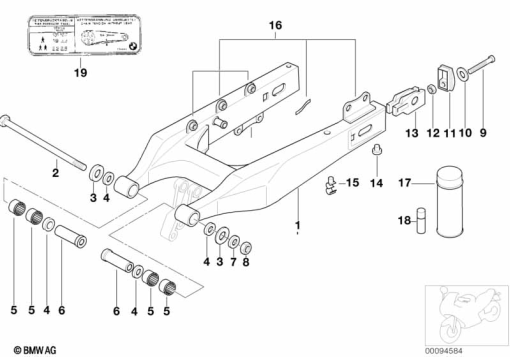

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 17 2 345 277 | REAR WHEEL SWINGING ARM | 1 | |
| 1 | 71 21 2 345 410 | LABEL "DRIVE CHAIN/TIRE PRESSUE" | 1 | |
| 2 | 33 17 2 345 281 | QUICK-RELEASE AXLE | 1 | |
| 3 | 33 17 2 345 279 | STOP DISK - 22X36X2 | 1 | |
| 4 | 33 17 2 345 278 | GASKET RING | 1 | |
| 5 | 33 17 2 345 283 | NEEDLE SLEEVE - 22X28X16 | 1 | |
| 6 | 33 17 2 345 280 | BUSH | 1 | |
| 7 | 07 11 9 905 829 | WASHER - A15 ZNS3 | 1 | |
| 8 | 33 17 2 345 435 | HEX NUT - M14X1,5 | 1 | |
| 9 | 07 11 9 901 038 | FILLISTER-HEAD SCREW - M8X70-8.8-ZNS | 1 | |
| 9 | 07 11 9 919 658 | SOCKET HEAD CAP SCREW | 1 | |
| 10 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 11 | 33 17 2 345 282 | SUPPORTING PLATE | 1 | |
| 12 | 36 31 2 345 495 | HEX NUT - M8 | 1 | |
| 13 | 33 17 2 345 433 | PLATE RIGHT | 1 | |
| 13 | 33 17 2 345 434 | PLATE LEFT | 1 | |
| 14 | 33 17 2 345 285 | BLIND PLUG | 1 | |
| 15 | 34 32 2 345 284 | CLAMP | 1 | |
| 16 | 33 17 2 345 590 | SET: SET MOUNTING PARTS | 1 | |
| 17 | 51 91 1 240 868 | SPRAY SILVER - 131 | 1 | |
| 19 | 71 21 2 345 648 | LABEL "DRIVE CHAIN/TIRE PRESSUE" | 1 |
