F650ST (E169) | Rear Axle & Suspension

SINGLE COMPONENTS FOR REAR SPRING STRUT

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #33_0676 | 7 parts

100%

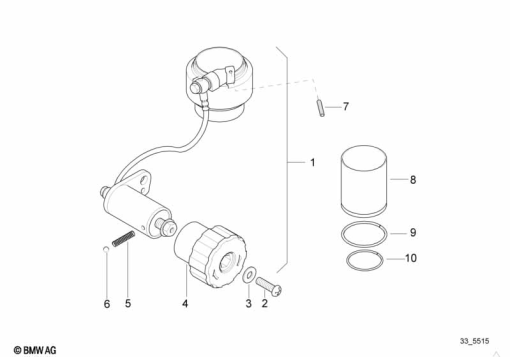

F650ST (E169) SINGLE COMPONENTS FOR REAR SPRING STRUT exploded view parts diagram

Parts List (7)

#	Part Number	Description	Qty
1	33 53 2 345 483	ADJUSTER UNIT	-
4	33 53 2 345 489	HANDWHEEL FOR SPRING STRUT ADJUSTMENT	-
5	33 53 2 345 487	COMPRESSION SPRING	-
6	33 53 2 345 488	BALL	-
8	33 53 2 345 485	SLEEVE	-
9	33 53 2 345 484	LOCK RING	-
10	33 53 2 345 486	LOCK RING	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
