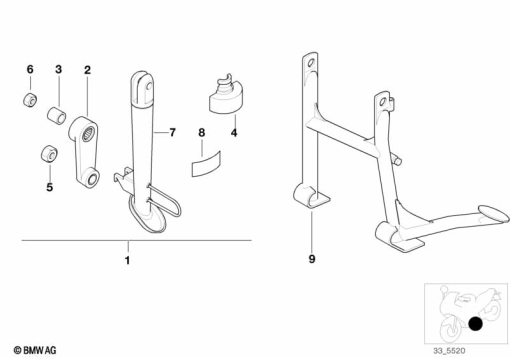

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 337 029 | SET: MODIFICATION KIT F LOWER CHASSIS | 1 | |
| 2 | 33 53 2 316 761 | TENSION STRUT | 1 | |
| 3 | 33 53 2 345 443 | BUSH | 1 | |
| 4 | 33 53 2 319 119 | BASE | 1 | |
| 5 | 33 53 2 345 533 | SELF-LOCKING HEX NUT - M12 | 1 | |
| 6 | 07 11 9 900 531 | HEX NUT - M10-05-ZNS | 1 | |
| 6 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | 1 | |
| 6 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | 1 | |
| 7 | 46 53 2 337 030 | SIDE STAND - KURZ | 1 | |
| 8 | 71 60 2 317 230 | STICK-ON LABEL | 1 | |
| 9 | 46 52 2 337 031 | CENTER STAND - KURZ | 1 |
