F650ST (E169) | Front Suspension

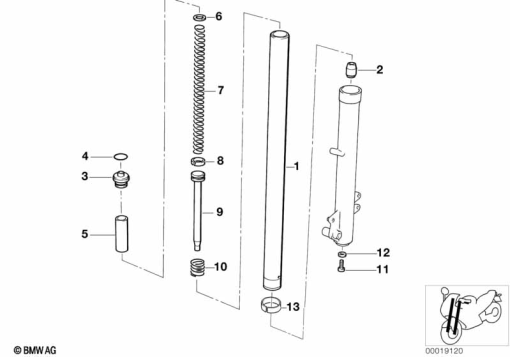

TELESCOPE FORK TUBE/ABSORBER/SPRING
Diagram #31_0343 | 13 parts | 1 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 2 345 376 | STANCHION | 1 | |
| 2 | 31 42 2 345 386 | STOPPER | 1 | |
| 3 | 31 42 2 345 382 | SPRING RETAINER | 1 | |
| 4 | 31 42 2 345 383 | O-RING | 1 | |
| 5 | 31 42 2 345 389 | SPACER TUBE | 1 | |
| 6 | 31 42 2 345 380 | RING | 1 | |
| 7 | 31 42 2 345 381 | COMPRESSION SPRING | 1 | |
| 8 | 31 42 2 345 384 | PISTON RING | 1 | |
| 9 | 31 42 2 345 379 | PIPE | 1 | |
| 10 | 31 42 2 345 385 | COMPRESSION SPRING | 1 | |
| 11 | 31 42 2 312 711 | FILLISTER-HEAD SCREW - M8X18-8.8-ZNS3 | 1 | |
| 12 | 31 42 2 312 710 | GASKET | 1 | |
| 13 | 31 42 2 312 847 | GUIDE BUSH | 1 |
