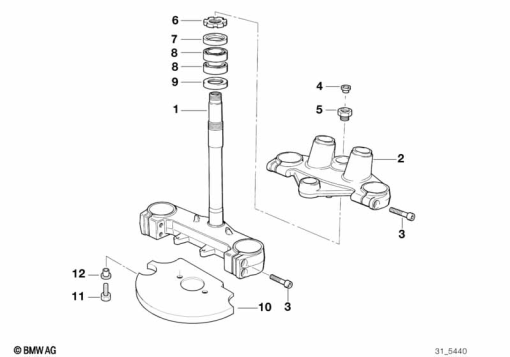

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 2 345 000 | LOWER FORK CROSS BRACE | 1 | |
| 2 | 31 42 2 345 001 | UPPER FORK CROSS BRACE | 1 | |
| 3 | 31 42 2 312 043 | FILLISTER-HEAD SCREW - M8X30 | 1 | |
| 4 | 31 42 2 345 295 | 0.01 | 1 | |
| 5 | 31 42 2 345 415 | HEX NUT - M22X1 | 1 | |
| 6 | 31 42 2 345 645 | 0.17 | 1 | |
| 7 | 31 42 2 345 290 | COVER | 1 | |
| 8 | 31 42 2 345 289 | TAPERED ROLLER BEARING - 25X52X16,5 | 1 | |
| 9 | 31 42 2 345 287 | GASKET RING | 1 | |
| 10 | 31 42 2 345 607 | COVER | 1 | |
| 11 | 13 71 2 343 300 | HEX BOLT - M6X20 | 1 | |
| 12 | 17 11 2 345 058 | BUSH | 1 |
