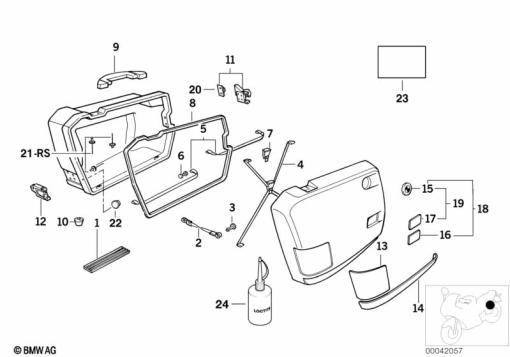

Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 300 039 | HINGE | - | |
| 2 | 46 54 2 300 441 | HOLDING STRAP - L=180MM | - | |
| 3 | 51 16 1 828 956 | 0.01 | - | |
| 4 | 46 54 2 315 754 | RUBBER BAND - 335 MM | - | |
| 5 | 46 54 2 315 753 | RUBBER BAND - 230MM | - | |
| 6 | 46 54 2 315 755 | AXLE | - | |
| 7 | 46 54 2 315 756 | HOOK | - | |
| 8 | 46 54 2 316 391 | GASKET LEFT | - | |
46 54 2 316 392 | GASKET RIGHTAlternative for position 8 | - | ||
| 9 | 46 54 2 315 073 | HANDLE | - | |
| 10 | 46 54 2 300 044 | SET: PAD | - | |
| 11 | 46 54 2 303 640 | CASE CATCH | - | |
| 12 | 46 54 2 303 652 | CASE SUSPENSION CATCH | - | |
| 13 | 46 54 2 315 055 | IMPACT PROTECTION - LEFT | - | |
46 54 2 315 056 | IMPACT PROTECTION - RIGHTAlternative for position 13 | - | ||
| 14 | 46 54 2 315 057 | IMPACT PROTECTION - LEFT | - | |
46 54 2 315 058 | IMPACT PROTECTION - RIGHTAlternative for position 14 | - | ||
| 15 | 46 54 2 300 045 | BADGE | - | |
| 16 | 46 54 2 300 046 | EMBLEM - TOURING | - | |
| 17 | 46 54 2 300 134 | REAR REFLECTOR YELLOW | - | |
63 14 8 529 372 | REAR REFLECTOR REDAlternative for position 17 | - | ||
| 18 | 46 54 9 056 968 | SET: INSTALLING SIDE MARKING LIGHT - TOURING | - | |
| 19 | 46 54 9 056 970 | SET: INSTALLING SIDE MARKING LIGHT - YELLOW | - | |
46 54 9 056 969 | SET: INSTALLING SIDE MARKING LIGHT - REDAlternative for position 19 | - | ||
| 20 | 46 54 2 303 642 | HOOK | - | |
| 21 | 46 54 2 316 689 | SET: SET OF COVER RIVETS | - | |
46 54 2 316 690 | SET: SET OF BOTTOM PART RIVETSAlternative for position 21 | - | ||
| 22 | 46 54 2 316 434 | PUSH-BUTTON INNER PART | - |
