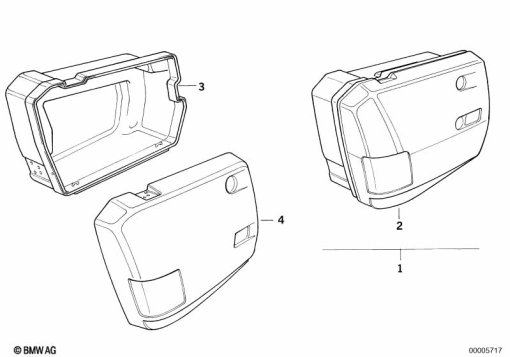

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 316 584 | SET: INTEGRAL CASE - BLACK | - | |
| 2 | 46 54 2 316 182 | INTEGRAL CASE RIGHT - 35L | - | |
46 54 2 316 593 | INTEGRAL CASE LEFT - BLACKAlternative for position 2 | - | ||
| 3 | 46 54 2 316 334 | HOUSING BOTTOM RIGHT | - | |
46 54 2 316 679 | HOUSING BOTTOM LEFTAlternative for position 3 | - | ||
| 4 | 46 54 2 316 357 | COVER LEFT - BLACK | - | |
46 54 2 316 358 | COVER RIGHT - BLACKAlternative for position 4 | - |
