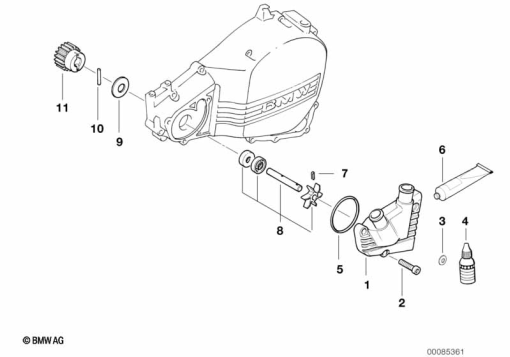

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 51 2 343 128 | WATERPUMP HOUSING | - | |
| 2 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 3 | 11 14 2 343 240 | GASKET RING - A6X10 | - | |
| 4 | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | - | |
| 5 | 11 51 2 343 129 | O-RING | - | |
| 6 | 11 00 7 660 832 | LUBRICANT MOLYKOTE 111 - 100G | - | |
| 7 | 11 51 2 343 123 | CLAMPING BUSH - 4X16 | - | |
| 8 | 11 51 2 343 451 | SET: SET, WATER PUMP SHAFT | - | |
| 9 | 11 41 2 343 107 | STOP DISK - 10,1X17X1 | - | |
| 10 | 11 51 2 343 127 | ROLL PIN - 4X19,8 | - | |
| 11 | 11 51 2 343 126 | PINION | - |
