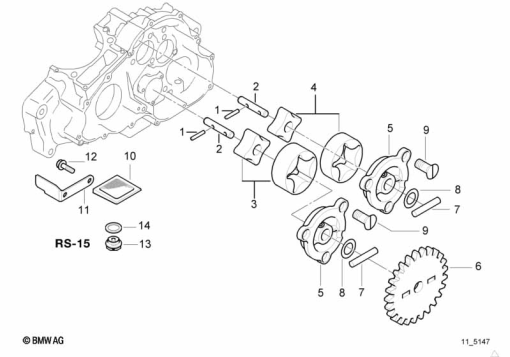

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 2 343 105 | ROLL PIN - 4X15,8 | - | |
| 2 | 11 41 2 343 474 | SHAFT | - | |
11 41 2 343 458 | LOCK RINGAlternative for position 2 | - | ||
| 3 | 11 41 2 343 098 | SET ROTOR | - | |
| 4 | 11 41 2 343 101 | SET ROTOR | - | |
| 5 | 11 41 2 343 106 | OIL PUMP COVER | - | |
| 6 | 11 41 2 343 109 | GEAR WHEEL - 25 | - | |
| 7 | 11 41 2 343 108 | ROLL PIN - 4X29,8 | - | |
| 8 | 11 41 2 343 107 | STOP DISK - 10,1X17X1 | - | |
| 9 | 11 41 7 654 012 | TORX BOLT - M5X16 | - | |
| 10 | 11 41 2 343 114 | OIL STRAINER | - | |
| 11 | 11 41 2 343 115 | GUIDE SHIELD | - | |
| 12 | 11 41 2 343 116 | SCREW SELF-TAPPING - M5X16 | - | |
| 13 | 11 41 2 343 498 | SCREW PLUG - M18X1,5 | - | |
| 14 | 11 31 2 343 091 | GASKET RING - 18,2X24X1 | - | |
| 15 | 11 11 2 343 436 | SET: REPAIR KIT, OIL DRAIN PLUG | - |
