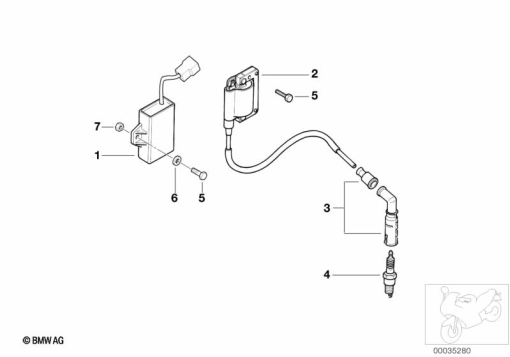

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 14 2 343 336 | IGNITION CONTROL UNIT - 80DB | - | |
| 2 | 12 13 2 343 281 | IGNITION COIL | - | |
| 3 | 12 12 2 343 145 | SPARK PLUG SOCKET | - | |
| 4 | 12 12 2 343 144 | SPARK PLUG - 12 NGK D8EA | - | |
| 5 | 12 13 2 345 541 | HEXAGON SCREW WITH FLANGE - M6X16 | - | |
13 71 2 343 300 | HEX BOLT - M6X20Alternative for position 5 | - | ||
| 6 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 6 | - | ||
| 7 | 63 14 2 346 469 | HEX NUT - M6 | - |
