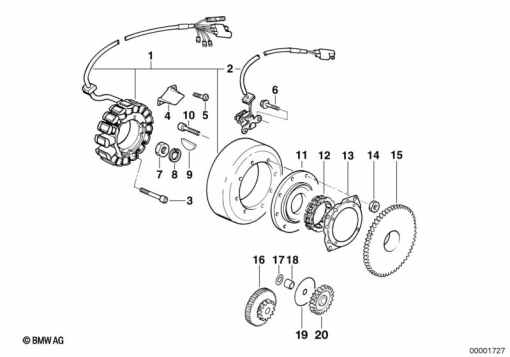

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 11 2 343 132 | MAGNETO GENERATOR | - | |
| 2 | 12 11 2 343 325 | PULSE GENERATOR | - | |
| 3 | 07 12 9 904 259 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X35-8.8-ZNS3 | - | |
| 4 | 12 11 2 343 135 | BRACKET INNER | - | |
| 5 | 12 11 2 343 133 | SCREW SELF-TAPPING - M4X8 | - | |
| 6 | 11 41 2 343 116 | SCREW SELF-TAPPING - M5X16 | - | |
| 7 | 12 31 7 700 301 | HEX NUT - M22X1,5 | - | |
| 8 | 12 11 2 343 250 | LOCK RING - 22 | - | |
| 9 | 11 27 2 343 243 | WOODRUFF KEY - 4X5 | - | |
| 10 | 12 11 2 343 520 | HEX NUT WITH RIBS - M6X16 | - | |
| 11 | 12 11 2 343 295 | 2.26 | - | |
| 12 | 12 11 2 343 296 | FREE WHEEL | - | |
| 13 | 12 11 2 343 290 | COVER | - | |
| 14 | 07 11 9 921 054 | HEX NUT - M6-04-2-ZN | - | |
| 15 | 12 11 7 675 940 | FREE WHEEL | - | |
12 31 7 700 297 | FREE WHEELAlternative for position 15 | - | ||
| 16 | 12 11 2 343 139 | GEAR WHEEL - 11/52 Z | - | |
| 17 | 11 41 2 343 107 | STOP DISK - 10,1X17X1 | - | |
| 18 | 12 11 2 343 140 | SPACER SLEEVE - 10X13X13,7 | - | |
| 19 | 11 41 2 343 267 | STOP DISK - 10X58X1,5 | - | |
| 20 | 12 11 2 343 138 | GEAR WHEEL - Z=24 | - |
