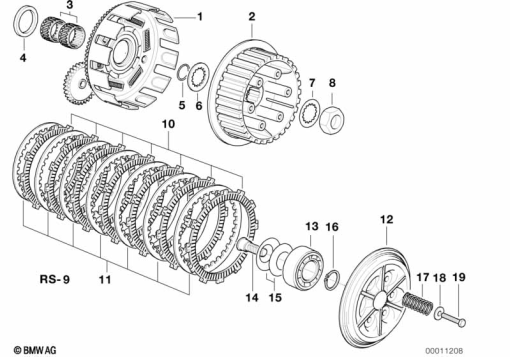

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 2 343 324 | CLUTCH HOUSING | - | |
| 2 | 21 21 2 343 301 | DRIVING DOG | - | |
| 3 | 21 21 2 343 165 | NEEDLE CAGE - 25X29X13 | - | |
21 21 2 343 166 | NEEDLE CAGE - 25X29X17Alternative for position 3 | - | ||
| 4 | 21 21 2 343 164 | SUPPORT - 25X35X2 | - | |
| 5 | 11 14 2 343 241 | O-RING - 17X1,5 | - | |
| 6 | 21 21 2 343 167 | STOP DISK - 20X38X3 | - | |
| 7 | 21 21 2 343 169 | SECURING PLATE | - | |
| 8 | 21 21 2 343 503 | HEX NUT - M18X1,5 | - | |
| 9 | 21 21 2 343 464 | SET: OF CLUTCH DISKS / CLUTCH SPRINGS - BELAG/FEDERN | - | |
| 10 | 21 21 2 343 171 | CLUTCH DISC | - | |
| 11 | 21 21 2 343 170 | INNER DISC - 1,5MM | - | |
| 12 | 21 21 2 343 172 | PLATE | - | |
| 13 | 21 21 2 343 173 | GROOVED BALL BEARING - 15X32X9 | - | |
| 14 | 21 21 7 685 374 | RELEASE BEARING | - | |
| 15 | 21 21 2 343 176 | DIAPHRAGM SPRING | - | |
| 16 | 07 11 9 902 398 | LOCK RING - 14X1 | - | |
| 17 | 21 21 2 343 174 | SPRING | - | |
| 18 | 21 21 2 343 257 | WASHER - B6,5 | - | |
| 19 | 07 11 9 913 589 | HEX BOLT - M6X25 | - |
