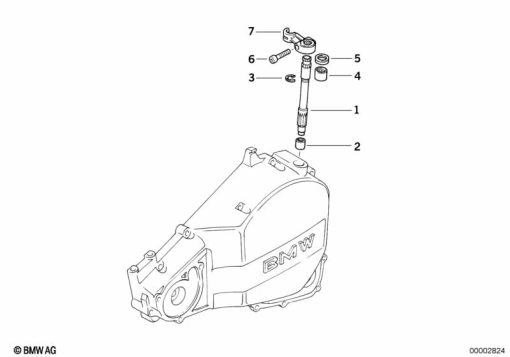

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 7 682 692 | OPERATING SHAFT - 11Z | - | |
| 2 | 11 14 2 343 036 | NEEDLE SLEEVE - 8X12X8 | - | |
| 3 | 21 21 2 343 258 | CIRCLIP | - | |
| 4 | 11 14 2 343 037 | NEEDLE SLEEVE - 12X16X10 | - | |
21 21 7 700 120 | NEEDLE SLEEVE - 12X16X10Alternative for position 4 | - | ||
| 5 | 21 21 2 343 259 | SHAFT SEAL - 12X18X4,5 | - | |
| 6 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 7 | 21 21 2 343 302 | CLUTCH REL.FORK LEVER | - |
