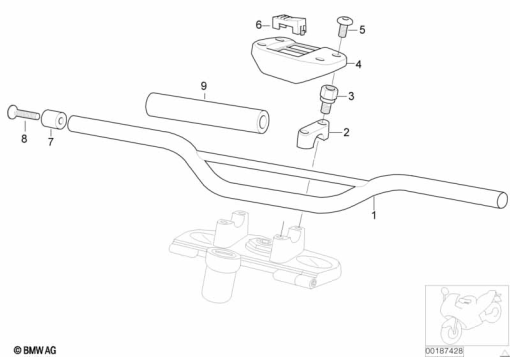

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 7 650 241 | HEATED HANDLE AT HANDLE-BAR | - | |
32 71 7 655 837 | HANDLEBARAlternative for position 1 | - | ||
| 2 | 31 42 8 522 439 | CLAMPING SUPPORT | - | |
| 3 | 32 71 7 652 161 | SCREW - M8X30 | - | |
| 4 | 46 63 7 652 163 | SWITCH SUPPORT | - | |
| 5 | 18 12 7 661 887 | FILLISTER HEAD SCREW - M5X8 | - | |
| 6 | 32 71 1 459 318 | COVERING CAP | - | |
| 7 | 32 71 2 346 586 | HANDLEBAR VIBRATION ABSORBER | - | |
32 71 7 658 947 | HANDLEBAR VIBRATION ABSORBERAlternative for position 7 | - | ||
| 8 | 07 11 9 907 222 | FILLISTER-HEAD SCREW - M6X75-A2-70-KL | - | |
07 12 9 905 006 | ISA SCREW - M6X60-8.8-ZNFEAlternative for position 8 | - | ||
| 9 | 71 60 7 653 857 | COVER F HANDLEBAR CROSSOVER | - |
