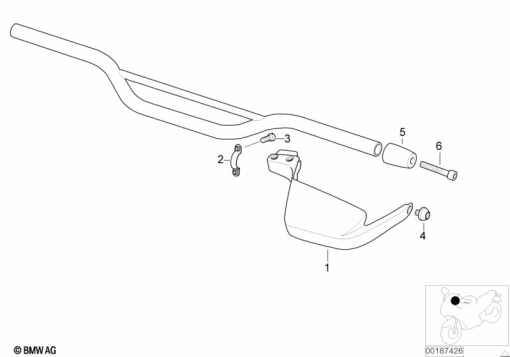

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 653 854 | HAND PROTECTOR RIGHT | - | |
71 60 7 682 224 | HAND PROTECTOR LEFTAlternative for position 1 | - | ||
| 2 | 71 60 7 659 140 | PIPE CLAMP | - | |
| 3 | 46 63 7 653 731 | OVAL-HEAD MACHINE SCREW, BLACK - M6X16 | - | |
| 4 | 32 71 7 659 838 | SPACER | - | |
| 5 | 32 71 2 346 586 | HANDLEBAR VIBRATION ABSORBER | - | |
32 71 7 658 947 | HANDLEBAR VIBRATION ABSORBERAlternative for position 5 | - | ||
| 6 | 07 12 9 905 006 | ISA SCREW - M6X60-8.8-ZNFE | - | |
11 11 7 706 512 | TORX BOLT - M6X75Alternative for position 6 | - |
