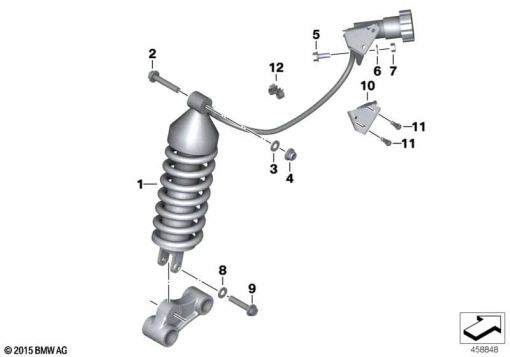

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 7 728 374 | SPRING STRUT, REAR | 1 | |
| 1 | 31 42 7 728 375 | STRUT, LOW, REAR | 1 | |
| 2 | 33 53 2 332 253 | HEX BOLT - M10X1.25X55-10. | 1 | |
| 3 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 4 | 07 12 9 964 677 | SELF-LOCKING HEX NUT - M10X1,25 | 1 | |
| 5 | 07 11 9 902 258 | FILLISTER-HEAD SCREW - M8X20 | 1 | |
| 6 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 7 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | 1 | |
| 8 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 9 | 33 54 8 523 427 | HEXAGON SCREW WITH FLANGE - M10X1,25X48 | 1 | |
| 10 | 33 53 7 650 347 | BRACKET, ADJUSTING WHEEL | 1 | |
| 11 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | 1 |
