F650GS 01-04 (R13) | Rear Axle & Suspension

REAR WHEEL SWINGING ARM

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

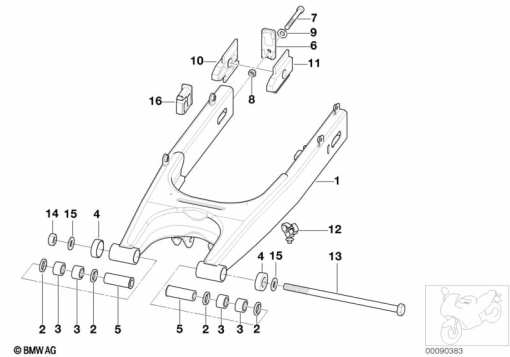

Diagram #33_1045 | 20 parts

100%

Parts List (20)

#	Part Number	Description	Qty
1	33 17 8 526 945	REAR WHEEL SWINGING ARM, SILVER	1
2	33 17 7 650 203	GASKET RING	1
3	33 53 7 650 093	NEEDLE SLEEVE - 22X28X16	1
4	33 17 7 654 293	STOP DISK	1
5	33 17 7 650 205	BUSHING	1
6	33 17 7 650 081	SUPPORTING PLATE - SILVER	1
7	07 12 9 903 811	ISA SCREW - M8X70	1
8	07 11 9 905 515	HEX NUT - M8-8-ZNNIV SI	1
9	07 14 9 180 923	WASHER - 8,4X18X2MM	1
10	33 17 7 107 931	CHAIN TENSIONER	1
10	33 17 7 107 931	CHAIN TENSIONER	1
–	33 17 7 650 079	PLATE LEFT	1
11	33 17 7 107 931	CHAIN TENSIONER	1
11	33 17 7 107 931	CHAIN TENSIONER	1
–	33 17 7 650 080	PLATE RIGHT	1
12	61 13 8 380 213	WIRE HOLDER, TWO-PLACE	1
13	33 17 7 650 588	AXLE SHAFT, SWING PART	1
14	07 12 9 906 047	SELF-LOCKING HEX NUT - M14X1,5-8-ZNS3	1
15	07 11 9 905 829	WASHER - A15 ZNS3	1
16	33 17 7 665 737	REINFORCEMENT CLIP	1
