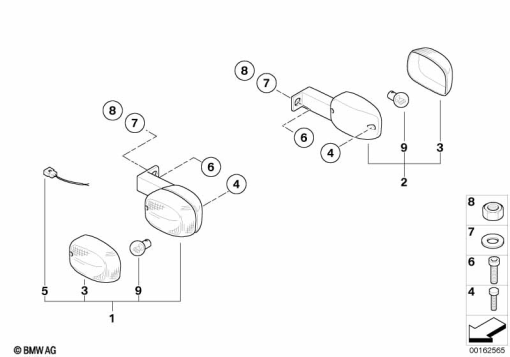

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 13 2 346 589 | FRONT LEFT TURN INDICATOR | - | |
63 13 2 346 590 | FRONT RIGHT TURN INDICATORAlternative for position 1 | - | ||
| 2 | 63 23 7 654 309 | REAR LEFT TURN INDICATOR | - | |
63 23 7 654 310 | REAR RIGHT TURN INDICATORAlternative for position 2 | - | ||
| 3 | 63 13 7 650 017 | HEADLIGHT DIFFUSER TURN SIGNAL LAMP | - | |
| 4 | 63 13 7 654 275 | FILLISTER HEAD SCREW - 2,9X25 | - | |
| 5 | 63 13 7 650 018 | CONNECTION CABLE - FRONT | - | |
| 6 | 07 12 9 905 261 | ISA SCREW - M6X16-8.8-MK | - | |
| - | 63 23 7 654 309 | REAR LEFT TURN INDICATOR | - | |
| - | 63 23 7 654 310 | REAR RIGHT TURN INDICATOR | - | |
| 7 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 9 | 07 11 9 905 337 | BULB - 12V 10W | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
