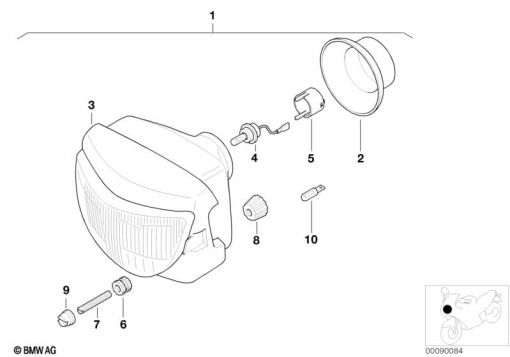

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 2 346 558 | HEADLIGHT | - | |
63 12 2 346 559 | HEADLIGHT - LV / LHTAlternative for position 1 | - | ||
| 2 | 63 12 7 650 105 | HEADLIGHT COVER | - | |
| 3 | 63 12 7 650 158 | COVER | - | |
| 4 | 63 12 1 354 619 | BULB - H4 | - | |
| 5 | 63 12 7 650 157 | SUPPORTING RING | - | |
| 6 | 63 12 2 346 560 | SET-NUT, HEIGHT ADJUSTMENT | - | |
63 12 2 346 561 | ADJUSTING NUT, CROSS ADJUSTMENTAlternative for position 6 | - | ||
| 7 | 63 12 2 346 562 | ADJUSTING SCREW, CROSS ADJUSTMENT | - | |
63 12 7 655 938 | SET-SCREW, HEIGHT ADJUSTMENT - LG=83MMAlternative for position 7 | - | ||
| 8 | 63 12 2 346 563 | ROTARY KNOB - HÖHE | - | |
63 12 7 654 274 | ROTARY KNOB, CROSS ADJUSTMENTAlternative for position 8 | - | ||
| 9 | 63 12 1 369 833 | JOINT SLEEVE (to 05/04) | - | |
| 10 | 63 21 7 160 797 | LONGLIFE BULB - 5W | - |
