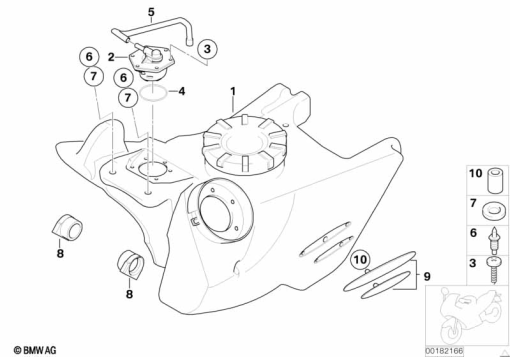

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 7 651 037 | FUEL TANK - US | - | |
| 2 | 16 11 2 347 148 | SAFETY VALVE | - | |
| 3 | 07 12 9 903 161 | SCREW FOR THERMOPLASTIC PLASTICS - 5X16 | - | |
| 4 | 16 11 2 347 009 | GASKET | - | |
| 6 | 16 11 2 350 064 | ADJUSTING SCREW | - | |
| 7 | 16 11 2 309 211 | RUBBER MOUNTING | - | |
| 8 | 16 11 2 350 066 | DISTANCE RUBBER | - | |
| 9 | 16 11 8 521 579 | SET: SET OF ABRASION GUARDS, PRIMED | - | |
16 11 7 654 282 | SET: SET OF ANTI-SCUFFINGSAlternative for position 9 | - | ||
16 11 7 673 172 | SET: SET OF ANTI-SCUFFINGSAlternative for position 9 | - | ||
16 11 7 652 673 | SET: SET OF ANTI-SCUFFINGSAlternative for position 9 | - | ||
16 11 7 652 558 | SET: SET OF ANTI-SCUFFINGSAlternative for position 9 | - | ||
16 11 7 652 560 | SET: SET OF ANTI-SCUFFINGSAlternative for position 9 | - | ||
16 11 7 673 171 | SET: SET OF ANTI-SCUFFINGSAlternative for position 9 | - | ||
16 11 7 663 006 | SET: SET OF ANTI-SCUFFINGSAlternative for position 9 | - | ||
16 11 7 673 170 | SET: SET OF ANTI-SCUFFINGSAlternative for position 9 | - | ||
16 11 7 652 559 | SET: SET OF ANTI-SCUFFINGSAlternative for position 9 | - | ||
| 10 | 16 11 7 651 565 | GROMMET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
