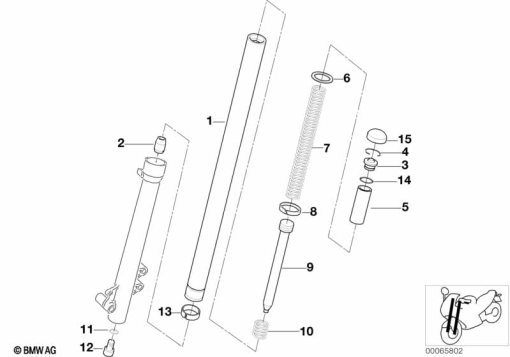

F650GS 01-04 (R13) | Front Suspension
FORK TUBE / SHOCK / SPRING
Diagram #31_0540 | 18 parts | 1 available in shop
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 661 399 | STANCHION | 1 | |
| 2 | 31 42 2 345 386 | STOPPER | 1 | |
| 3 | 31 42 7 655 781 | SPRING RETAINER | 1 | |
| 4 | 31 42 2 312 713 | SNAP RING | 1 | |
| 5 | 31 42 7 661 613 | SPACER TUBE | 1 | |
| 5 | 31 42 2 345 389 | SPACER TUBE | 1 | |
| 6 | 31 42 2 345 380 | RING | 1 | |
| 7 | 31 42 7 658 887 | COMPRESSION SPRING | 1 | |
| 7 | 31 42 2 345 381 | COMPRESSION SPRING | 1 | |
| 8 | 31 42 2 345 384 | PISTON RING | 1 | |
| 9 | 31 42 7 658 886 | PIPE | 1 | |
| 9 | 31 42 7 655 780 | PIPE | 1 | |
| 10 | 31 42 2 345 385 | COMPRESSION SPRING | 1 | |
| 11 | 31 42 2 312 710 | GASKET | 1 | |
| 12 | 31 42 2 312 711 | FILLISTER-HEAD SCREW - M8X18-8.8-ZNS3 | 1 | |
| 13 | 31 42 7 659 779 | SLIDING SLEEVE | 1 | |
| 14 | 31 42 2 345 383 | O-RING | 1 | |
| 15 | 31 42 2 312 712 | COVER CAP | 1 |
