F650GS 01-04 (R13) | Front Suspension

FORK SLIDER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

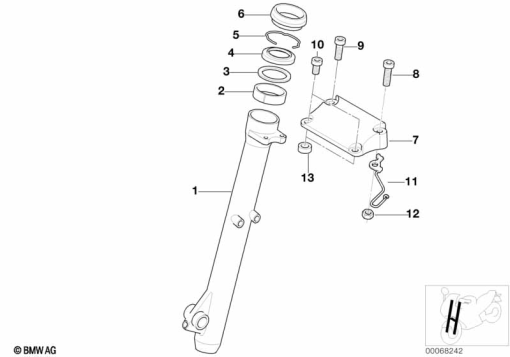

Diagram #31_0554 | 20 parts

100%

Parts List (20)

#	Part Number	Description	Qty
1	31 42 7 678 481	SLIDER TUBE LEFT	-
	31 42 7 678 482	SLIDER TUBE RIGHTAlternative for position 1	-
2	31 42 7 659 780	GUIDE BUSH	-
3	31 42 2 312 839	SHIM	-
4	31 42 2 312 838	GASKET RING	-
5	31 42 2 312 837	SUPPORTING RING	-
6	31 42 7 681 274	0.05	-
7	31 42 7 729 244	ANTI-ROLL BAR, SILVER	-
8	31 42 7 655 779	FILLISTER-HEAD SCREW - M8X55/HI.LEFT	-
	31 42 7 660 425	PAN-HEAD MACHINE SCREW, REAR RIGHT - M8X50Alternative for position 8	-
	31 42 7 660 426	PAN-HEAD MACHINE SCREW, REAR LEFT - M8X65Alternative for position 8	-
9	31 42 7 655 778	FILLISTER-HEAD SCREW - M8X45-A4	-
	31 42 7 660 425	PAN-HEAD MACHINE SCREW, REAR RIGHT - M8X50Alternative for position 9	-
10	31 42 7 655 775	CYLINDER SCREW, FRONT - M8X20	-
	31 42 7 655 776	CYLINDER SCREW, FRONT - M8X30Alternative for position 10	-
11	34 32 7 655 401	BRAKE PIPE BRACKET	-
	34 32 7 651 549	BRAKE PIPE BRACKET - ABSAlternative for position 11	-
	34 32 7 655 401	BRAKE PIPE BRACKETAlternative for position 11	-
12	07 11 9 905 515	HEX NUT - M8-8-ZNNIV SI	-
13	31 42 8 520 150	SPACER, SILVER - GS DAKAR	-
